VERTICAL PRESS UN-110T

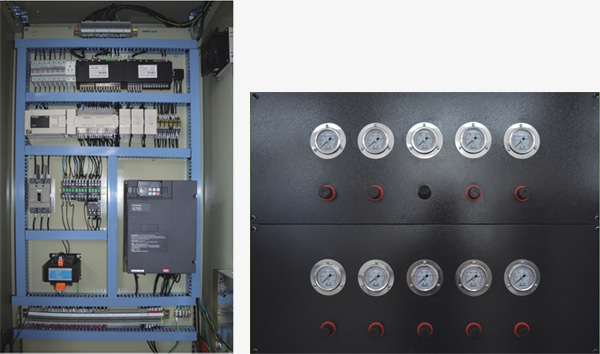

The Press which offers a large tool area is optimized for fast mould change and easy setup. The shut height is adjustable according to the mould requirement. The Press has 12PLC controlled solenoid valves with independent pressure redulators for optimal tool setup and adjustment. The press is also equipped with 4 additional pressure tanks for optimal air distribution.

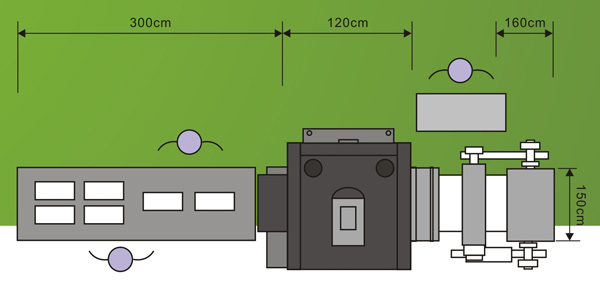

The operator of the machine only has to set up the packaging requirement(pcs to count)at the touch screen and collect the finished counted and stached products on the end of the line.

Advantages:
1. Welded body with steel plate and high intensity.
2. Main motor is made by Siemens.
3. Adopts combined pneumatic friction clutch and brake.
4. Cluster gear adopts the flooding oil lubrication.
5. Six-face rectangle lengthen guide;
6. Equipped with hydraulic overload protecting device.
7. Electric shut height adjustment with digital display.
8. Equipped with lifting balance cylinder.
9. Duplex valves imported.
10. Electric compelling grease lubrication system.
11. Balancing cylinder adopts manual lubrication system.
12. One set of blowing device.

Nominal force 1100KN,H-Type Press  Stroke time 30-70 times/ Min.  Slide block stroke(Optional Size ) 240/260mm(Option)  Max.height of mould installation 450mm  Height adjustment for mould 80mm  Distance from slide block center to body 740mm  Work block dimension 1480 x 900mm  Adjustable work block dimension X2 850(L)x220(W)x300(H)mm x2  Dimension of Slide block bottom surface 750 x 520mm  Hole Dimension Slide block bottom surface 470 x 470mm  Press Machine Type Electric shut hight adjustment  Press Net Weight 13,000KG  Voltage &Frequency(Optional) 380V, 50/60Hz, 3 Phase  Total power 15kW  Press dimension (LxWxH) 2230x2150x3500mm
