VERTICAL PRESS UN-80T

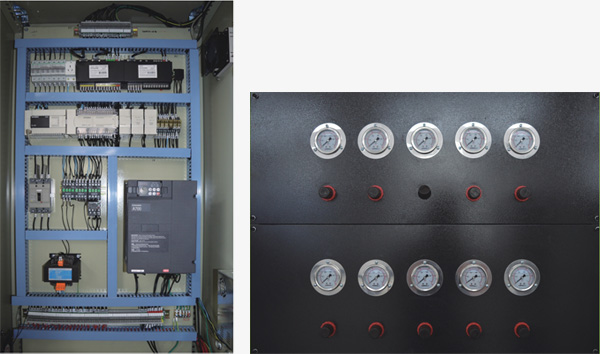

The Press which offers a large tool area is optimized for fast mould change and easy setup. The shut height is adjustable according to the mould requirement. The Press has 12PLC controlled solenoid valves with independent pressure redulators for optimal tool setup and adjustment. The press is also equipped with 4 additional pressure tanks for optimal air distribution.
The operator of the machine only has to set up the packaging requirement(pcs to count)at the touch screen and collect the finished counted and stached products on the end of the line.


Advantages:
1. Welded body with steel plate and high intensity.
2. Main motor is made by Siemens.
3. Adopts combined pneumatic friction clutch and brake.
4. Cluster gear adopts the flooding oil lubrication.
5. Six-face rectangle lengthen guide;
6. Equipped with hydraulic overload protecting device.
7. Electric shut height adjustment with digital display.
8. Equipped with lifting balance cylinder.
9. Duplex valves imported.
10. Electric compelling grease lubrication system.
11. Balancing cylinder adopts manual lubrication system.
12. One set of blowing device.

£¦#160;Nominal force 800KN,H-Type Press £¦#160;Stroke time 20-70 times/ Min. £¦#160;MSlide block stroke(Optional Size ) 240/260mm(Option) £¦#160;FMax.height of mould installation 450mm £¦#160;Height adjustment for mould 80mm £¦#160;Distance from slide block center to body 610mm £¦#160;Adjustable work block dimension X2 1000(L)x220(W)x300(H)mm x2 £¦#160;Dimension of Slide block bottom surface (RAM) 520£¦#160;x 520mm £¦#160;Hole Dimension Slide block bottom surface 340 x 460mm £¦#160;Size of centering hole(DiameterxDepth) 50 x 90mm £¦#160;Press Machine Type Electric shut hight adjustment £¦#160;Press Net Weight 11,000KG £¦#160;Voltage &Frequency(Optional) 380V, 50/60Hz, 3 Phase £¦#160;Total power 15kW £¦#160;Press dimension (LxWxH) 2500x1300x3800mm
