HOUSEHOLD RE-WINDER
Multifunction rewinding machine developed against foreign equipments and domestic requirements, which is a fully automatic machine to adhering, take-up, cutting certain rolls in one process .It is suitable for various large jumbo roll into small and narrow roll, such as household aluminum foil roll, paper roll, plastic roll, etc...
Advantages:
1. Computer control to setup and measure the length of foils.
2. High process rate for large volume production.
3. All drivers are automatic, less defect, safety, high efficiency and simple operating.
Uses:
Auminium foil roll, paper roll, plastic roll, etc...
| Model |
UNRW-4212 |

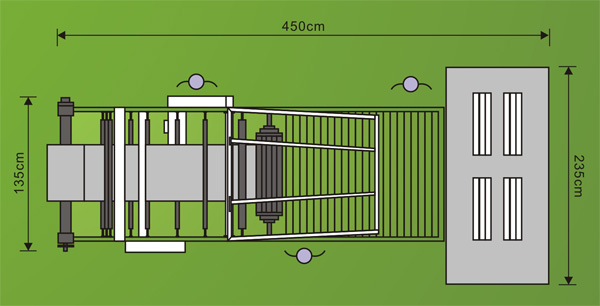

| Machine Size L x W x H |
4.2m*1.2m*1.8m |
| Thickness of Material |
0.008mm - 0.03mm |
| Width of Material |
200 - 600mm |
| Inner Core Diameter of Finished Roll |
¦µ90mm |
| Roll Cutting Size |
3 - 500m |
| Voltage |
380V 50HZ |
| Speed |
120m/min |
| Power |
4kw |
| Pneumatic |
0.5-0.8Mpa |
| Station |
4 Station |
| Weight |
1800kg |
|
