AUTO-PACKAGE MACHINE

UNGAR Vertical L-bar Sealer Series provides flexible and durable packaging solutions to customers due to our advanced designs and innovation technology. One of the features of the series is the adjustable sealing frame, making the packaging process applicable to small to large commodities. Besides, with this practical function, the sealing line can always be located at the centre of the product's lateral side, making the sealing line more stable. The chance of having broken packages could be reduced. In addition, the time of the sealing process for thin commodities is expected to be shortening, increasing the productivity of your factory.
UNGAR Vertical L-bar Sealer Series is no doubt the best packaging solution for you!


-1)The 4-pillar sealing frame providing consistent and effective sealing process
-2) Adjustable sealing frame making large-scale commodity packaging applicable
-3)Folding on the sealing lines, which could be easily found with the use of traditional L-bar scissor sealing system, could be minimized
-4)Two sets of vertical and horizontal photoelectric sensor systems ensuring the preciseness of the package length
-5)Multiple parts of the machine adjustable, providing the flexibility to handle films
-6)CE mark certificated
-7)Production line could be set up by adding different infeed systems
-8)Films deployed at the lower part of the machine for easy film reloading and preventing any possible injuries resulted by the film reloading process
-9)Perforation pins can be easily changed and adjusted
-10) Tailor-made versions avaiable

Optional:
-1) Additional retractable conveyor (aims for small and unstable product,see bellow picture)
-2)Automatic feeder for CD, DVD, magazine, box, etc, saving manpower
-3) Easy-handling touch screen control prevents man-made mistakes
 a)Programmable controller
b)Auto error indicator provides an easy way for operational mistakes' correction
c)99 sets of products could be stored in the machine memory, enhancing the efficiency of product change over
d)Measure #118alues are used in the control system of the maching, providing a fast, simple and speedy product changing

Uses:

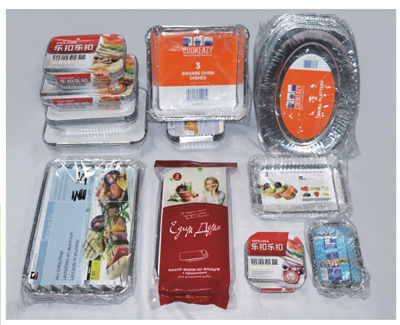

Beverages, tin can, bottled, soya sauce, daily-use products, cosmetic, candy, electronically appliances, stationery, gift boxes, greeting card, photo album, etc. They create extremely elegant packaging quality.

Model  UNAP-2014    Machine Size L x W x H (mm)  2000 x 1450 x 1315    Sealing Bars Size L x W (mm)  630 x 515     Packing Size L x W x H (mm)  (60~560) x (60~430) x (10~180)  Tailor-made versions available  Conveyor Speed (m/min)  26     Voltage  1PH, 220V     Power (KW)  3.0     Pneumatic  55psi, 4kg/sq.cm     Applicable Films  POF,PVC, PE

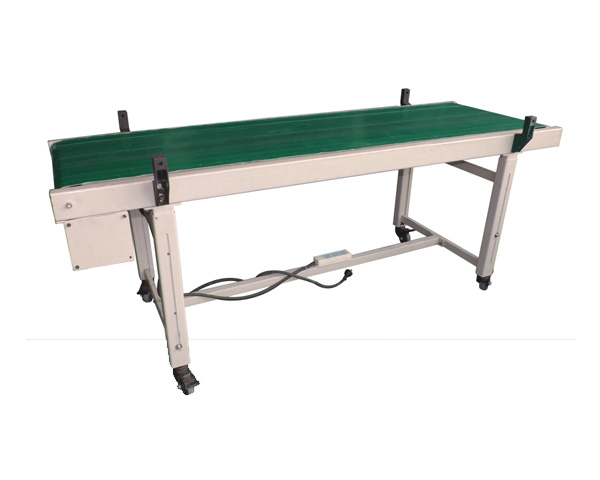

Conveyor :

Model  UNCY-10045  Machine Size L x W x H (mm)  1000 x 450 x 750   Belt Width (mm)  350  Conveyor Speed Range (m/min)  0-30  Electrical Source  AC, 1PH, 220V, 2A  Power Consumption (KW)  0.5
